AT2 Precision Ag Autosteering System Product Specs

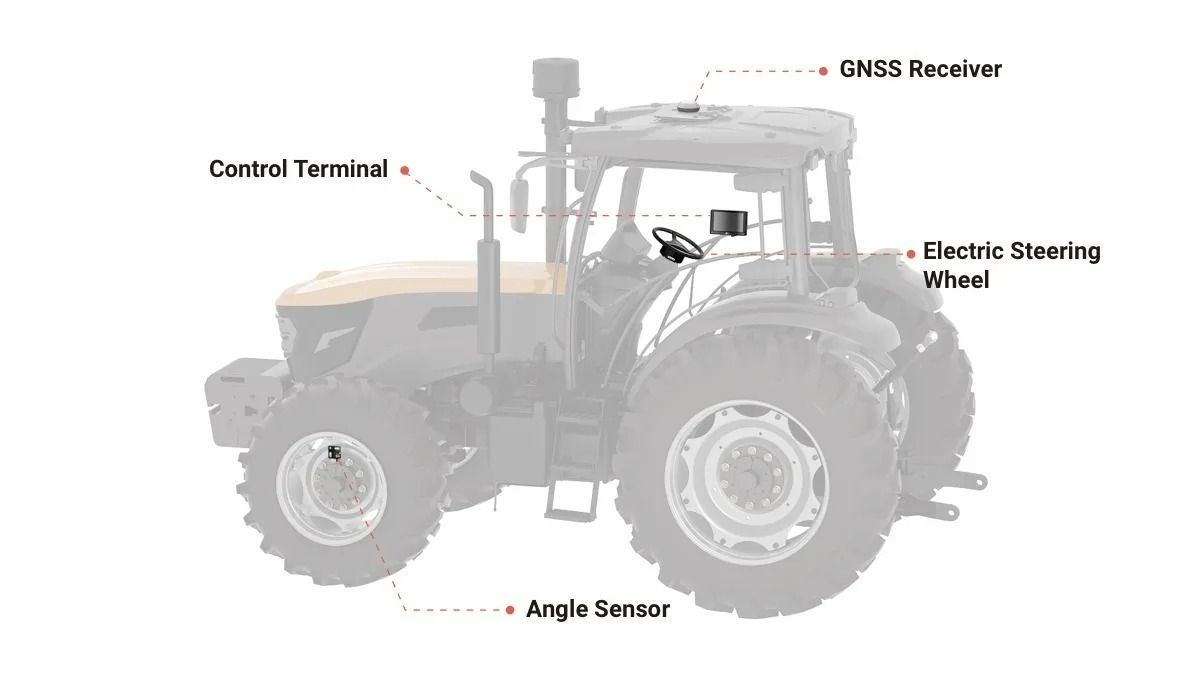

A tractor with a steering wheel and a control terminal on a white background.

General Specifications


  • Dimension: 275 x 180 x 40 mm
  • Screen: 10.1-inch touchscreen, 700 nits LED screen
  • Power Supply: 9 V – 36 V
  • Pixel: 1280 * 800 pixels
  • Storage: 2 G RAM, 8 G ROM
  • Operating Temperature: -20℃ ~ 70℃
  • Storage Temperature: -40℃ ~ 85℃
  • Waterproof and Dustproof: IP65

Wi-Fi Configuration


  • Frequency Band: 2.4 GHz
  • Frequency Range: 2.4 GHz - 2.5 GHz
  • Output Power: 14 dB ± 1.5 dB

Access Port


  • Main wiring harness x 2
  • Radio x 1
  • Type-C x 2
  • SIM card x 1

Constellations


  • GPS: L1C/A, L1C, L2P(W), L2C, L5
  • GLONASS: L1, L2
  • BDS: B1I, B2I, B3I, B1C, B2a
  • Galileo: E1, E5a, E5b
  • QZSS: L1, L2, L5

Satellite Corrections


  • SBAS: WAAS, EGNOS, MSAS

Other Specifications


  • Dimension: 162 * 64.5mm
  • Operating Temperature: -20℃ ～ +70℃
  • Storage Temperature: -40℃ ～ +85℃
  • Waterproof and Dustproof: IP66
  • Operation Voltage: 9 V – 36 V
  • Acceleration Accuracy:＜300 mA
  • Operation Current: 0.5 mg
  • Gyroscope Accuracy: 0.1° per second
  • Roll and Pitch Angle: 0.2°

  • Dimension: 410 x 410 x 135mm
  • Power Supply: 12 V / 24 V
  • Maximum Torque: 20 Nm(12 V) / 30 Nm(24 V)
  • Waterproof and Dustproof: IP65
